DH92-IIDE
Ultrasonic Tissue homogenization
Power 650W, crushing capacity 0.5-500ml

Ultrasonic Tissue homogenization DH92-IIDE, is a multifunctional and versatile instrument that uses strong ultrasound to create cavitation effects in liquids for ultrasonic processing of various animal and plant cells and virus cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among others.

Product Introduction
Ultrasonic Tissue homogenization DH92-IIDE, is a multifunctional and versatile instrument that uses strong ultrasound to create cavitation effects in liquids for ultrasonic processing of various animal and plant cells and virus cells. It can also be used for emulsification, separation, homogenization, extraction, defoaming, cleaning, and accelerating chemical reactions, among others.

Product Features
◆7-inch large screen display for more intuitive parameter display and more convenient touch operation
◆Display of simulated data waveform of ultrasonic power and time width
◆Rich functions: cell crushing, homogenization, separation, extraction, defoaming, cleaning and acceleration of chemical reactions
◆Alarm function: time, overload, no-load, and over-temperature
◆Customizable settings for ultrasonic time, interval time, total time, and power ratio
◆Easy operation: centrally controlled by microcomputer for optimized user experience
◆Low noise: equipped with soundproof box to reduce noise disturbance
◆Long operation time: supports continuous operation for more than 1 hour

Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.

Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.

Materials and Reagents
10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.

Technical Parameters
Model:	DH92-IIDE
Frequency:	20-25KHz (Automatic tracking)
Power:	650W
Standard Horn:	Φ6
Optional Horns:	Φ2, 3, 10
Crushing Capacity:	0.5-500ml
Duty Ratio:	1-99%
Screen Size:	7 inches
Screen Material:	High-definition TFT touch screen
Single Ultrasonic Time:	0.1-99.9s
Single Interval Time:	0.1-99.9s
Total Time:	1-99H59M59S
Temperature Control Function*:	Yes (automatically pause ultrasound when reaching preset temperature)
Optional functions:	PC communication+remote control+user password protection+data printing+automatic lifting soundproof box+lighting or sterilization
Data storage:	20 groups
Power supply:	220/110V 50Hz/60Hz
Power supply chassis size:	410225290mm
Soundproof box size:	470305430mm
Net weight:	14.1kg
Main unit+transducer weight:	16.5kg
Outer packaging size:	534×295×435mm

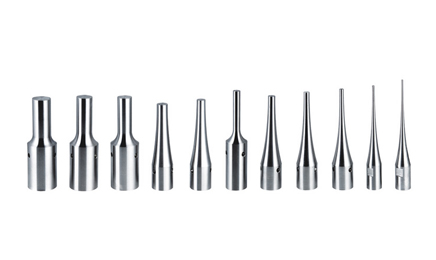

Probe Model Selection
Model	Cell Disruption Capacity
Φ2mm	150ul－5ml
Φ3mm	200ul－10ml
Φ6mm	10ml－200ml
Φ10mm	50ml－500ml

Single Page - Color Page
Name:	Author:	Action:
Ultrasonic Tissue homogenization DH92-IIDE	ultrasonic	Download

Product List

DH92-IIDE	Unit
Host Machine	Unit
Vibration System (Transducer Assembly)	Set
Soundproof box	set
Cross clamp (inside the soundproof box)	piece
Test tube clamp (inside the soundproof box)	piece
Special Wrench (used for disassembling the amplitu	Set
Fuses	piece
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1; 1; 1; 1; 1; 8A, 5A each 2; 1; 1; 1; 1
